Collaboration diagram for Myth::Control:

[legend]

Public Member Functions
	Control (const std::string &server, unsigned protoPort, unsigned wsapiPort, const std::string &wsapiSecurityPin)
	Control (const std::string &server, unsigned protoPort, unsigned wsapiPort, const std::string &wsapiSecurityPin, bool frontend)
Control &	WithAuthorization (const std::string &user, const std::string &password)
Control &	WithSSL (bool yesno)
bool	Open ()
void	Close ()
bool	IsOpen ()
bool	HasHanging () const
void	CleanHanging ()
ProtoBase::ERROR_t	GetProtoError () const
unsigned	CheckService ()
	Check availability of API services.
std::string	GetServerHostName ()
	Query server host name.
std::string	GetBaseURL ()
	Returns the base URL of WS-API.
VersionPtr	GetVersion ()
	Query server version infos.
bool	QueryFreeSpaceSummary (int64_t total, int64_t used)
	Queries the backend for free space summary.
bool	QueryGenPixmap (const Program &program)
	Triggers preview image generation on the backend for a specified show.
bool	CancelNextRecording (int rnum, bool cancel)
	Ask the backend to cancel/continue next recording.
SettingPtr	GetHostSetting (const std::string &key, const std::string &hostname)
	Query setting by its key.
SettingPtr	GetSetting (const std::string &key, bool myhost)
	Query setting by its key.
SettingMapPtr	GetHostSettings (const std::string &hostname)
	Query all settings.
SettingMapPtr	GetSettings (bool myhost)
	Query all settings.
bool	PutSetting (const std::string &key, const std::string &value, bool myhost)
	Put setting.
std::string	GetBackendServerIP (const std::string &hostName)
	Query backend server IP.
std::string	GetBackendServerIP6 (const std::string &hostName)
	Query backend server IP6.
unsigned	GetBackendServerPort (const std::string &hostName)
	Query backend server port for protocol commands.
ProgramListPtr	GetRecordedList (unsigned n=0, bool descending=false)
	Query information on all recorded programs.
ProgramPtr	GetRecorded (uint32_t chanid, time_t recstartts)
	Query information on a single item from recordings.
ProgramPtr	GetRecorded (uint32_t recordedid)
	Query information on a single item from recordings.
bool	UpdateRecordedWatchedStatus (const Program &program, bool watched)
	Update watched status for a recorded.
bool	DeleteRecording (const Program &program, bool forceDelete=false, bool allowRerecord=false)
	Remove a Recording from the database and disk.
bool	UndeleteRecording (const Program &program)
bool	StopRecording (const Program &program)
CaptureCardListPtr	GetCaptureCardList ()
	Get all configured capture devices.
VideoSourceListPtr	GetVideoSourceList ()
	Get all video sources.
ChannelListPtr	GetChannelList (uint32_t sourceid, bool onlyVisible=true)
	Get all configured channels for a video source.
ChannelPtr	GetChannel (uint32_t chanid)
	Retrieve a single channel, by channel id.
ProgramMapPtr	GetProgramGuide (uint32_t chanid, time_t starttime, time_t endtime)
	Query the guide information for a particular time period and a channel.
std::map< uint32_t, ProgramMapPtr >	GetProgramGuide (time_t starttime, time_t endtime)
	Query the guide information for a particular time period.
RecordScheduleListPtr	GetRecordScheduleList ()
	Query all configured recording rules.
RecordSchedulePtr	GetRecordSchedule (uint32_t recordid)
	Get a single recording rule, by record id.
bool	AddRecordSchedule (RecordSchedule &record)
	Add a new recording rule.
bool	UpdateRecordSchedule (RecordSchedule &record)
	Update a recording rule.
bool	DisableRecordSchedule (uint32_t recordid)
	Disable a recording rule.
bool	EnableRecordSchedule (uint32_t recordid)
	Enable a recording rule.
bool	RemoveRecordSchedule (uint32_t recordid)
	Remove a recording rule.
ProgramListPtr	GetUpcomingList ()
	Query information on all upcoming programs matching recording rules.
ProgramListPtr	GetConflictList ()
	Query information on upcoming items which will not record due to conflicts.
ProgramListPtr	GetExpiringList ()
	Query information on recorded programs which are set to expire.
StringListPtr	GetRecGroupList ()
	Get list of recording group.
WSStreamPtr	GetFile (const std::string &filename, const std::string &sgname)
	Download a given file from a given storage group.
WSStreamPtr	GetChannelIcon (uint32_t chanid, unsigned width=0, unsigned height=0)
	Get the icon file for a given channel.
std::string	GetChannelIconUrl (uint32_t chanid, unsigned width=0, unsigned height=0)
	Get URL of icon for a given channel.
WSStreamPtr	GetPreviewImage (const Program &program, unsigned width=0, unsigned height=0)
	Get, and optionally scale, an preview thumbnail for a given recording by timestamp, chanid and starttime.
std::string	GetPreviewImageUrl (const Program &program, unsigned width=0, unsigned height=0)
	Get URL of preview thumbnail for a given recording by timestamp, chanid and starttime.
WSStreamPtr	GetRecordingArtwork (const std::string &type, const Program &program, unsigned width=0, unsigned height=0)
	Get, and optionally scale, an image file of a given type (coverart, banner, fanart) for a given recording's inetref and season number.
std::string	GetRecordingArtworkUrl (const std::string &type, const Program &program, unsigned width=0, unsigned height=0)
	Get an image URL of a given type (coverart, banner, fanart) for a given recording's inetref and season number.
ArtworkListPtr	GetRecordingArtworkList (uint32_t chanid, time_t recstartts)
	Get a list of artwork available for a recording by start time and channel id.
bool	RefreshRecordedArtwork (Program &program)
	Refresh artwork available for a recording.
MarkListPtr	GetCutList (const Program &program, int unit=0)
	Request a set of cut list marks for a recording.
MarkListPtr	GetCommBreakList (const Program &program, int unit=0)
	Request a set of commercial break marks for a recording.
bool	BlockShutdown ()
	Prevents backend from shutting down until a the next call to AllowShutdown().
bool	AllowShutdown ()
	Allows backend to shut down again after a previous call to BlockShutdown().
bool	SetSavedBookmark (const Program &program, int unit, int64_t value)
	Set saved bookmark for a program.
int64_t	GetSavedBookmark (const Program &program, int unit)
	Retrieve saved bookmark for a program.

Private Attributes
ProtoMonitor	m_monitor
WSAPI	m_wsapi

Detailed Description

Definition at line 32 of file mythcontrol.h.

Constructor & Destructor Documentation

◆ Control() [1/2]

Control::Control	(	const std::string &	server,
		unsigned	protoPort,
		unsigned	wsapiPort,
		const std::string &	wsapiSecurityPin )

Definition at line 26 of file mythcontrol.cpp.

◆ Control() [2/2]

Control::Control	(	const std::string &	server,
		unsigned	protoPort,
		unsigned	wsapiPort,
		const std::string &	wsapiSecurityPin,
		bool	frontend )

Definition at line 33 of file mythcontrol.cpp.

◆ ~Control()

Control::~Control ( )

Definition at line 40 of file mythcontrol.cpp.

Member Function Documentation

◆ AddRecordSchedule()

bool Myth::Control::AddRecordSchedule ( RecordSchedule & record )

inline

Add a new recording rule.

Parameters

record

Returns: status. On success Id is updated with the new.

Definition at line 364 of file mythcontrol.h.

◆ AllowShutdown()

bool Myth::Control::AllowShutdown ( )

inline

Allows backend to shut down again after a previous call to BlockShutdown().

Returns: bool

Definition at line 595 of file mythcontrol.h.

◆ BlockShutdown()

bool Myth::Control::BlockShutdown ( )

inline

Prevents backend from shutting down until a the next call to AllowShutdown().

Returns: bool

Definition at line 586 of file mythcontrol.h.

◆ CancelNextRecording()

bool Myth::Control::CancelNextRecording	(	int	rnum,
		bool	cancel )

inline

Ask the backend to cancel/continue next recording.

Parameters

rnum	recorder Id
cancel

Returns: bool

Definition at line 120 of file mythcontrol.h.

◆ CheckService()

unsigned Myth::Control::CheckService ( )

inline

Check availability of API services.

Returns: If unavailable then 0 else the backend protocol number

Definition at line 61 of file mythcontrol.h.

◆ CleanHanging()

void Myth::Control::CleanHanging ( )

inline

Definition at line 54 of file mythcontrol.h.

◆ Close()

void Control::Close ( )

Definition at line 52 of file mythcontrol.cpp.

◆ DeleteRecording()

bool Myth::Control::DeleteRecording	(	const Program &	program,
		bool	forceDelete = false,
		bool	allowRerecord = false )

inline

Remove a Recording from the database and disk.

Parameters

program
forceDelete	(default false)
allowRerecord	(default false)

Returns: bool

Definition at line 253 of file mythcontrol.h.

◆ DisableRecordSchedule()

bool Myth::Control::DisableRecordSchedule ( uint32_t recordid )

inline

Disable a recording rule.

Parameters

recordid

Returns: status

Definition at line 384 of file mythcontrol.h.

◆ EnableRecordSchedule()

bool Myth::Control::EnableRecordSchedule ( uint32_t recordid )

inline

Enable a recording rule.

Parameters

recordid

Returns: status

Definition at line 394 of file mythcontrol.h.

◆ GetBackendServerIP()

std::string Control::GetBackendServerIP ( const std::string & hostName )

Query backend server IP.

Parameters

hostName

Returns: string containing found IP or nil

Definition at line 58 of file mythcontrol.cpp.

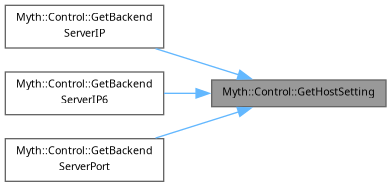

References GetHostSetting().

◆ GetBackendServerIP6()

std::string Control::GetBackendServerIP6 ( const std::string & hostName )

Query backend server IP6.

Parameters

hostName

Returns: string containing found IP6 or nil

Definition at line 68 of file mythcontrol.cpp.

References GetHostSetting().

◆ GetBackendServerPort()

unsigned Control::GetBackendServerPort ( const std::string & hostName )

Query backend server port for protocol commands.

Parameters

hostName

Returns: unsigned more than 0 else invalid

Definition at line 78 of file mythcontrol.cpp.

References GetHostSetting().

◆ GetBaseURL()

std::string Myth::Control::GetBaseURL ( )

inline

Returns the base URL of WS-API.

Returns: string

Definition at line 79 of file mythcontrol.h.

◆ GetCaptureCardList()

CaptureCardListPtr Myth::Control::GetCaptureCardList ( )

inline

Get all configured capture devices.

Returns: CaptureCardListPtr

Definition at line 282 of file mythcontrol.h.

◆ GetChannel()

ChannelPtr Myth::Control::GetChannel ( uint32_t chanid )

inline

Retrieve a single channel, by channel id.

Parameters

chanid

Returns: ChannelPtr

Definition at line 312 of file mythcontrol.h.

◆ GetChannelIcon()

WSStreamPtr Myth::Control::GetChannelIcon	(	uint32_t	chanid,
		unsigned	width = 0,
		unsigned	height = 0 )

inline

Get the icon file for a given channel.

Parameters

chanid
width	(default 0)
height	(default 0)

Returns: WSStreamPtr

Definition at line 463 of file mythcontrol.h.

◆ GetChannelIconUrl()

std::string Myth::Control::GetChannelIconUrl	(	uint32_t	chanid,
		unsigned	width = 0,
		unsigned	height = 0 )

inline

Get URL of icon for a given channel.

Parameters

chanid
width	(default 0)
height	(default 0)

Returns: url

Definition at line 475 of file mythcontrol.h.

◆ GetChannelList()

ChannelListPtr Myth::Control::GetChannelList	(	uint32_t	sourceid,
		bool	onlyVisible = true )

inline

Get all configured channels for a video source.

Parameters

sourceid
onlyVisible	(default true)

Returns: ChannelListPtr

Definition at line 302 of file mythcontrol.h.

◆ GetCommBreakList()

MarkListPtr Myth::Control::GetCommBreakList	(	const Program &	program,
		int	unit = 0 )

inline

Request a set of commercial break marks for a recording.

Parameters

program
unit	0 = Frame count, 1 = Position, 2 = Duration ms

Returns: MarkListPtr

Definition at line 571 of file mythcontrol.h.

◆ GetConflictList()

ProgramListPtr Myth::Control::GetConflictList ( )

inline

Query information on upcoming items which will not record due to conflicts.

Returns: ProgramListPtr

Definition at line 422 of file mythcontrol.h.

◆ GetCutList()

MarkListPtr Myth::Control::GetCutList	(	const Program &	program,
		int	unit = 0 )

inline

Request a set of cut list marks for a recording.

Parameters

program
unit	0 = Frame count, 1 = Position, 2 = Duration ms

Returns: MarkListPtr

Definition at line 554 of file mythcontrol.h.

◆ GetExpiringList()

ProgramListPtr Myth::Control::GetExpiringList ( )

inline

Query information on recorded programs which are set to expire.

Returns: ProgramListPtr

Definition at line 431 of file mythcontrol.h.

◆ GetFile()

WSStreamPtr Myth::Control::GetFile	(	const std::string &	filename,
		const std::string &	sgname )

inline

Download a given file from a given storage group.

Parameters

filename
sgname

Returns: WSStreamPtr

Definition at line 451 of file mythcontrol.h.

◆ GetHostSetting()

SettingPtr Myth::Control::GetHostSetting	(	const std::string &	key,
		const std::string &	hostname )

inline

Query setting by its key.

Parameters

key
hostname

Returns: SettingPtr

Definition at line 131 of file mythcontrol.h.

Referenced by GetBackendServerIP(), GetBackendServerIP6(), and GetBackendServerPort().

Here is the caller graph for this function:

◆ GetHostSettings()

SettingMapPtr Myth::Control::GetHostSettings ( const std::string & hostname )

inline

Query all settings.

Parameters

hostname

Returns: SettingMapPtr

Definition at line 152 of file mythcontrol.h.

◆ GetPreviewImage()

WSStreamPtr Myth::Control::GetPreviewImage	(	const Program &	program,
		unsigned	width = 0,
		unsigned	height = 0 )

inline

Get, and optionally scale, an preview thumbnail for a given recording by timestamp, chanid and starttime.

Parameters

program
width	(default 0)
height	(default 0)

Returns: WSStreamPtr

Definition at line 487 of file mythcontrol.h.

◆ GetPreviewImageUrl()

std::string Myth::Control::GetPreviewImageUrl	(	const Program &	program,
		unsigned	width = 0,
		unsigned	height = 0 )

inline

Get URL of preview thumbnail for a given recording by timestamp, chanid and starttime.

Parameters

program
width	(default 0)
height	(default 0)

Returns: url

Definition at line 499 of file mythcontrol.h.

◆ GetProgramGuide() [1/2]

std::map< uint32_t, ProgramMapPtr > Myth::Control::GetProgramGuide	(	time_t	starttime,
		time_t	endtime )

inline

Query the guide information for a particular time period.

Parameters

starttime
endtime

Returns: map

Definition at line 335 of file mythcontrol.h.

◆ GetProgramGuide() [2/2]

ProgramMapPtr Myth::Control::GetProgramGuide	(	uint32_t	chanid,
		time_t	starttime,
		time_t	endtime )

inline

Query the guide information for a particular time period and a channel.

Parameters

chanid
starttime
endtime

Returns: ProgramMapPtr

Definition at line 324 of file mythcontrol.h.

◆ GetProtoError()

ProtoBase::ERROR_t Myth::Control::GetProtoError ( ) const

inline

Definition at line 55 of file mythcontrol.h.

◆ GetRecGroupList()

StringListPtr Myth::Control::GetRecGroupList ( )

inline

Get list of recording group.

Returns: StringListPtr

Definition at line 440 of file mythcontrol.h.

◆ GetRecorded() [1/2]

ProgramPtr Myth::Control::GetRecorded	(	uint32_t	chanid,
		time_t	recstartts )

inline

Query information on a single item from recordings.

Parameters

chanid
recstartts

Returns: ProgramPtr

Definition at line 217 of file mythcontrol.h.

◆ GetRecorded() [2/2]

ProgramPtr Myth::Control::GetRecorded ( uint32_t recordedid )

inline

Query information on a single item from recordings.

Parameters

recordedid

Returns: ProgramPtr

Definition at line 227 of file mythcontrol.h.

◆ GetRecordedList()

ProgramListPtr Myth::Control::GetRecordedList	(	unsigned	n = 0,
		bool	descending = false )

inline

Query information on all recorded programs.

Parameters

n
descending

Returns: ProgramListPtr

Definition at line 206 of file mythcontrol.h.

◆ GetRecordingArtwork()

WSStreamPtr Myth::Control::GetRecordingArtwork	(	const std::string &	type,
		const Program &	program,
		unsigned	width = 0,
		unsigned	height = 0 )

inline

Get, and optionally scale, an image file of a given type (coverart, banner, fanart) for a given recording's inetref and season number.

Parameters

type
program
width	(default 0)
height	(default 0)

Returns: WSStreamPtr

Definition at line 512 of file mythcontrol.h.

◆ GetRecordingArtworkList()

ArtworkListPtr Myth::Control::GetRecordingArtworkList	(	uint32_t	chanid,
		time_t	recstartts )

inline

Get a list of artwork available for a recording by start time and channel id.

Parameters

chanid
recstartts

Returns: ArtworkListPtr

Definition at line 536 of file mythcontrol.h.

Referenced by RefreshRecordedArtwork().

Here is the caller graph for this function:

◆ GetRecordingArtworkUrl()

std::string Myth::Control::GetRecordingArtworkUrl	(	const std::string &	type,
		const Program &	program,
		unsigned	width = 0,
		unsigned	height = 0 )

inline

Get an image URL of a given type (coverart, banner, fanart) for a given recording's inetref and season number.

Parameters

type
program
width	(default 0)
height	(default 0)

Returns: WSStreamPtr

Definition at line 525 of file mythcontrol.h.

◆ GetRecordSchedule()

RecordSchedulePtr Myth::Control::GetRecordSchedule ( uint32_t recordid )

inline

Get a single recording rule, by record id.

Parameters

recordid

Returns: RecordSchedulePtr

Definition at line 354 of file mythcontrol.h.

◆ GetRecordScheduleList()

RecordScheduleListPtr Myth::Control::GetRecordScheduleList ( )

inline

Query all configured recording rules.

Returns: RecordScheduleListPtr

Definition at line 344 of file mythcontrol.h.

◆ GetSavedBookmark()

int64_t Myth::Control::GetSavedBookmark	(	const Program &	program,
		int	unit )

inline

Retrieve saved bookmark for a program.

Parameters

program
unit	1 = Position, 2 = Duration ms

Returns: value

Definition at line 617 of file mythcontrol.h.

◆ GetServerHostName()

std::string Myth::Control::GetServerHostName ( )

inline

Query server host name.

Returns: string

Definition at line 70 of file mythcontrol.h.

◆ GetSetting()

SettingPtr Myth::Control::GetSetting	(	const std::string &	key,
		bool	myhost )

inline

Query setting by its key.

Parameters

key
myhost

Returns: SettingPtr

Definition at line 142 of file mythcontrol.h.

◆ GetSettings()

SettingMapPtr Myth::Control::GetSettings ( bool myhost )

inline

Query all settings.

Parameters

myhost

Returns: SettingMapPtr

Definition at line 162 of file mythcontrol.h.

◆ GetUpcomingList()

ProgramListPtr Myth::Control::GetUpcomingList ( )

inline

Query information on all upcoming programs matching recording rules.

Returns: ProgramListPtr

Definition at line 413 of file mythcontrol.h.

◆ GetVersion()

VersionPtr Myth::Control::GetVersion ( )

inline

Query server version infos.

Returns: VersionPtr

Definition at line 88 of file mythcontrol.h.

◆ GetVideoSourceList()

VideoSourceListPtr Myth::Control::GetVideoSourceList ( )

inline

Get all video sources.

Returns: VideoSourceListPtr

Definition at line 291 of file mythcontrol.h.

◆ HasHanging()

bool Myth::Control::HasHanging ( ) const

inline

Definition at line 53 of file mythcontrol.h.

◆ IsOpen()

bool Myth::Control::IsOpen ( )

inline

Definition at line 52 of file mythcontrol.h.

◆ Open()

bool Control::Open ( )

Definition at line 45 of file mythcontrol.cpp.

◆ PutSetting()

bool Myth::Control::PutSetting	(	const std::string &	key,
		const std::string &	value,
		bool	myhost )

inline

Put setting.

Parameters

key
value
myhost

Returns: bool

Definition at line 174 of file mythcontrol.h.

◆ QueryFreeSpaceSummary()

bool Myth::Control::QueryFreeSpaceSummary	(	int64_t *	total,
		int64_t *	used )

inline

Queries the backend for free space summary.

Parameters

total
used

Returns: bool

Definition at line 99 of file mythcontrol.h.

◆ QueryGenPixmap()

bool Myth::Control::QueryGenPixmap ( const Program & program )

inline

Triggers preview image generation on the backend for a specified show.

Parameters

program

Returns: bool

Definition at line 109 of file mythcontrol.h.

◆ RefreshRecordedArtwork()

bool Control::RefreshRecordedArtwork ( Program & program )

Refresh artwork available for a recording.

Parameters

program

Returns: bool Return true if any artwork found

Definition at line 88 of file mythcontrol.cpp.

References GetRecordingArtworkList().

◆ RemoveRecordSchedule()

bool Myth::Control::RemoveRecordSchedule ( uint32_t recordid )

inline

Remove a recording rule.

Parameters

recordid

Returns: status

Definition at line 404 of file mythcontrol.h.

◆ SetSavedBookmark()

bool Myth::Control::SetSavedBookmark	(	const Program &	program,
		int	unit,
		int64_t	value )

inline

Set saved bookmark for a program.

Parameters

program
unit	1 = Position, 2 = Duration ms

Returns: bool

Definition at line 606 of file mythcontrol.h.

◆ StopRecording()

bool Myth::Control::StopRecording ( const Program & program )

inline

Definition at line 273 of file mythcontrol.h.

◆ UndeleteRecording()

bool Myth::Control::UndeleteRecording ( const Program & program )

inline

Definition at line 263 of file mythcontrol.h.

◆ UpdateRecordedWatchedStatus()

bool Myth::Control::UpdateRecordedWatchedStatus	(	const Program &	program,
		bool	watched )

inline

Update watched status for a recorded.

Parameters

chanid
recstartts

Returns: bool

Definition at line 238 of file mythcontrol.h.

◆ UpdateRecordSchedule()

bool Myth::Control::UpdateRecordSchedule ( RecordSchedule & record )

inline

Update a recording rule.

Parameters

record

Returns: status

Definition at line 374 of file mythcontrol.h.

◆ WithAuthorization()

Control & Myth::Control::WithAuthorization	(	const std::string &	user,
		const std::string &	password )

inline

Definition at line 39 of file mythcontrol.h.

◆ WithSSL()

Control & Myth::Control::WithSSL ( bool yesno )

inline

Definition at line 44 of file mythcontrol.h.

Field Documentation

◆ m_monitor

ProtoMonitor Myth::Control::m_monitor

private

Definition at line 623 of file mythcontrol.h.

◆ m_wsapi

WSAPI Myth::Control::m_wsapi

private

Definition at line 624 of file mythcontrol.h.

The documentation for this class was generated from the following files:

/home/jlb/src/janbar/PVR/cppmythlib/cppmyth/src/mythcontrol.h
/home/jlb/src/janbar/PVR/cppmythlib/cppmyth/src/mythcontrol.cpp

Public Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ Control() [1/2]

◆ Control() [2/2]

◆ ~Control()

Member Function Documentation

◆ AddRecordSchedule()

◆ AllowShutdown()

◆ BlockShutdown()

◆ CancelNextRecording()

◆ CheckService()

◆ CleanHanging()

◆ Close()

◆ DeleteRecording()

◆ DisableRecordSchedule()

◆ EnableRecordSchedule()

◆ GetBackendServerIP()

◆ GetBackendServerIP6()

◆ GetBackendServerPort()

◆ GetBaseURL()

◆ GetCaptureCardList()

◆ GetChannel()

◆ GetChannelIcon()

◆ GetChannelIconUrl()

◆ GetChannelList()

◆ GetCommBreakList()

◆ GetConflictList()

◆ GetCutList()

◆ GetExpiringList()

◆ GetFile()

◆ GetHostSetting()

◆ GetHostSettings()

◆ GetPreviewImage()

◆ GetPreviewImageUrl()

◆ GetProgramGuide() [1/2]

◆ GetProgramGuide() [2/2]

◆ GetProtoError()

◆ GetRecGroupList()

◆ GetRecorded() [1/2]

◆ GetRecorded() [2/2]

◆ GetRecordedList()

◆ GetRecordingArtwork()

◆ GetRecordingArtworkList()

◆ GetRecordingArtworkUrl()

◆ GetRecordSchedule()

◆ GetRecordScheduleList()

◆ GetSavedBookmark()

◆ GetServerHostName()

◆ GetSetting()

◆ GetSettings()

◆ GetUpcomingList()

◆ GetVersion()

◆ GetVideoSourceList()

◆ HasHanging()

◆ IsOpen()

◆ Open()

◆ PutSetting()

◆ QueryFreeSpaceSummary()

◆ QueryGenPixmap()

◆ RefreshRecordedArtwork()

◆ RemoveRecordSchedule()

◆ SetSavedBookmark()

◆ StopRecording()

◆ UndeleteRecording()

◆ UpdateRecordedWatchedStatus()

◆ UpdateRecordSchedule()

◆ WithAuthorization()

◆ WithSSL()

Field Documentation

◆ m_monitor

◆ m_wsapi
