NSROOT::UdpSocket Class Reference

Inheritance diagram for NSROOT::UdpSocket:

Collaboration diagram for NSROOT::UdpSocket:

Public Member Functions
	UdpSocket (size_t bufferSize)
int	GetErrNo () const
bool	SendData (const char *buf, size_t size)
size_t	ReceiveData (void *buf, size_t n)
bool	IsValid () const
bool	Open (SOCKET_AF_t af, const char *target, unsigned port)
bool	Open (SOCKET_AF_t af, bool broadcast=false)
bool	SetAddress (const char *target, unsigned port)
bool	SetMulticastTTL (int multicastTTL)
std::string	GetRemoteAddrInfo () const
net_socket_t	GetHandle () const
Public Member Functions inherited from NSROOT::NetSocket
void	SetTimeout (timeval timeout)

Private Member Functions
	UdpSocket (const UdpSocket &)
UdpSocket &	operator= (const UdpSocket &)

Private Attributes
SocketAddress *	m_addr
SocketAddress *	m_from
net_socket_t	m_socket
int	m_errno
char *	m_buffer
char *	m_bufptr
size_t	m_buflen
size_t	m_rcvlen

Additional Inherited Members
Protected Attributes inherited from NSROOT::NetSocket
struct timeval	m_timeout

Detailed Description

Definition at line 250 of file socket.h.

Constructor & Destructor Documentation

UdpSocket() [1/2]

UdpSocket::UdpSocket

(

)

Definition at line 806 of file socket.cpp.

UdpSocket() [2/2]

UdpSocket::UdpSocket

(

size_t

bufferSize

)

Definition at line 818 of file socket.cpp.

~UdpSocket()

UdpSocket::~UdpSocket ( )

virtual

Definition at line 830 of file socket.cpp.

Member Function Documentation

GetErrNo()

int NSROOT::UdpSocket::GetErrNo ( ) const

inline

Returns

the last error occuring on call

Definition at line 260 of file socket.h.

GetHandle()

net_socket_t NSROOT::UdpSocket::GetHandle ( ) const

inline

Returns

the socket handle

Definition at line 324 of file socket.h.

GetRemoteAddrInfo()

std::string UdpSocket::GetRemoteAddrInfo

(

)

const

Returns

the address string of the remote host

Definition at line 1062 of file socket.cpp.

IsValid()

bool UdpSocket::IsValid

(

)

const

Returns

true when socket is opened, else false

Definition at line 1057 of file socket.cpp.

Referenced by Open(), ReceiveData(), SendData(), SetAddress(), and SetMulticastTTL().

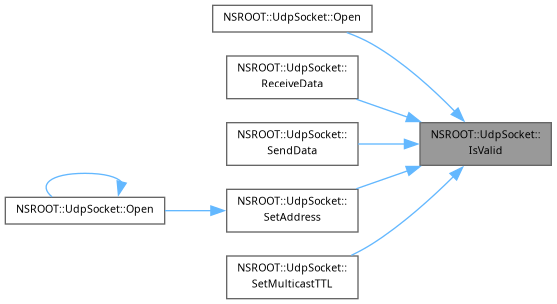

Here is the caller graph for this function:

Open() [1/2]

bool UdpSocket::Open	(	SOCKET_AF_t	af,
		bool	broadcast = false )

Open the socket.

Parameters

af	the protocol
broadcast	enable broadcast permission

Returns

true on success, else false

Definition at line 859 of file socket.cpp.

References IsValid().

Open() [2/2]

bool UdpSocket::Open	(	SOCKET_AF_t	af,
		const char *	target,
		unsigned	port )

Open the socket and configure the given destination.

Parameters

af	the protocol
target	the address name of destination
port

Returns

true on success, else false

Definition at line 854 of file socket.cpp.

References Open(), and SetAddress().

Referenced by Open().

Here is the caller graph for this function:

ReceiveData()

size_t UdpSocket::ReceiveData ( void * buf, size_t n )

virtual

Read data from the socket.

Parameters

buf	the pointer to write received data
n	the number of byte to read

Returns

the number of received byte

Implements NSROOT::NetSocket.

Definition at line 990 of file socket.cpp.

References IsValid().

SendData()

bool UdpSocket::SendData ( const char * buf, size_t size )

virtual

Send data into the socket.

Parameters

buf	the pointer to data
size	the number of byte to send

Returns

true when succeeded, else false

Implements NSROOT::NetSocket.

Definition at line 973 of file socket.cpp.

References IsValid().

SetAddress()

bool UdpSocket::SetAddress	(	const char *	target,
		unsigned	port )

Configure the destination.

Parameters

target	the address name of destination
port

Returns

true on success, else false

Definition at line 892 of file socket.cpp.

References IsValid().

Referenced by Open().

Here is the caller graph for this function:

SetMulticastTTL()

bool UdpSocket::SetMulticastTTL

(

int

multicastTTL

)

Configure hop limit value to be used for multicast packets on the opened socket.

Parameters

multicastTTL

Returns

true on success, else false

Definition at line 934 of file socket.cpp.

References IsValid().

Field Documentation

m_addr

SocketAddress* NSROOT::UdpSocket::m_addr

private

Definition at line 327 of file socket.h.

m_buffer

char* NSROOT::UdpSocket::m_buffer

private

Definition at line 331 of file socket.h.

m_buflen

size_t NSROOT::UdpSocket::m_buflen

private

Definition at line 333 of file socket.h.

m_bufptr

char* NSROOT::UdpSocket::m_bufptr

private

Definition at line 332 of file socket.h.

m_errno

int NSROOT::UdpSocket::m_errno

private

Definition at line 330 of file socket.h.

m_from

SocketAddress* NSROOT::UdpSocket::m_from

private

Definition at line 328 of file socket.h.

m_rcvlen

size_t NSROOT::UdpSocket::m_rcvlen

private

Definition at line 334 of file socket.h.

m_socket

net_socket_t NSROOT::UdpSocket::m_socket

private

Definition at line 329 of file socket.h.

---

The documentation for this class was generated from the following files:

• /home/jlb/src/janbar/PVR/cppmythlib/cppmyth/src/private/socket.h
• /home/jlb/src/janbar/PVR/cppmythlib/cppmyth/src/private/socket.cpp
